19.03.00 printing the current view

To print just the current view (what is currently being displayed in the Image Window),

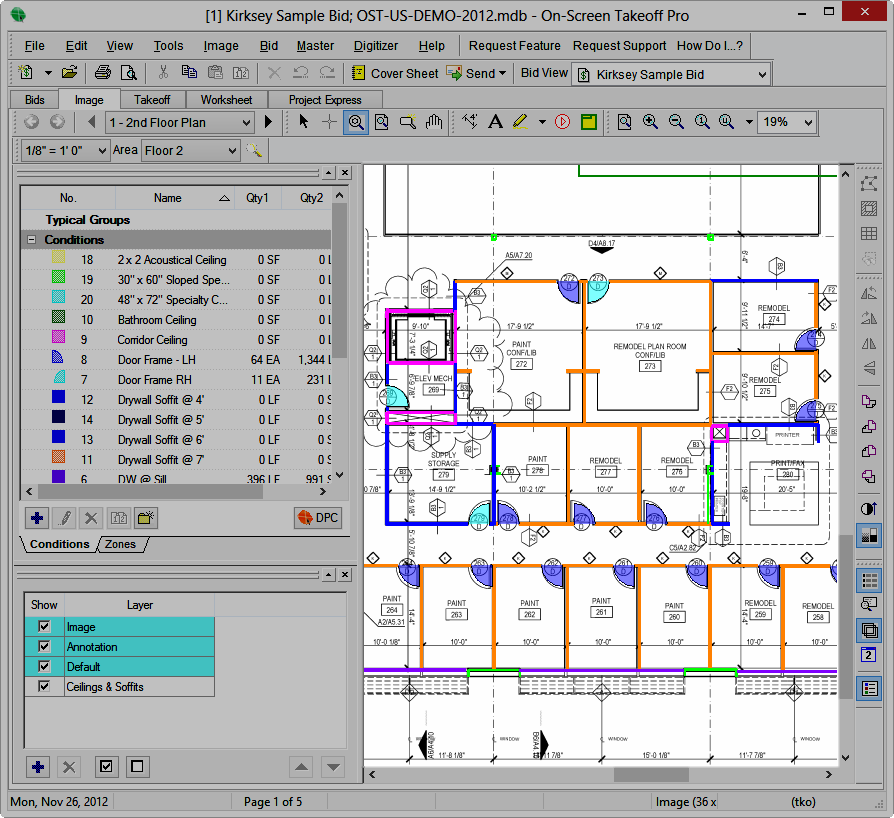

• Click on the Image Tab
• Navigate to the page which contains the information to print
• Zoom in on what to print out - use the Zoom and Pan tools to zoom and center the view

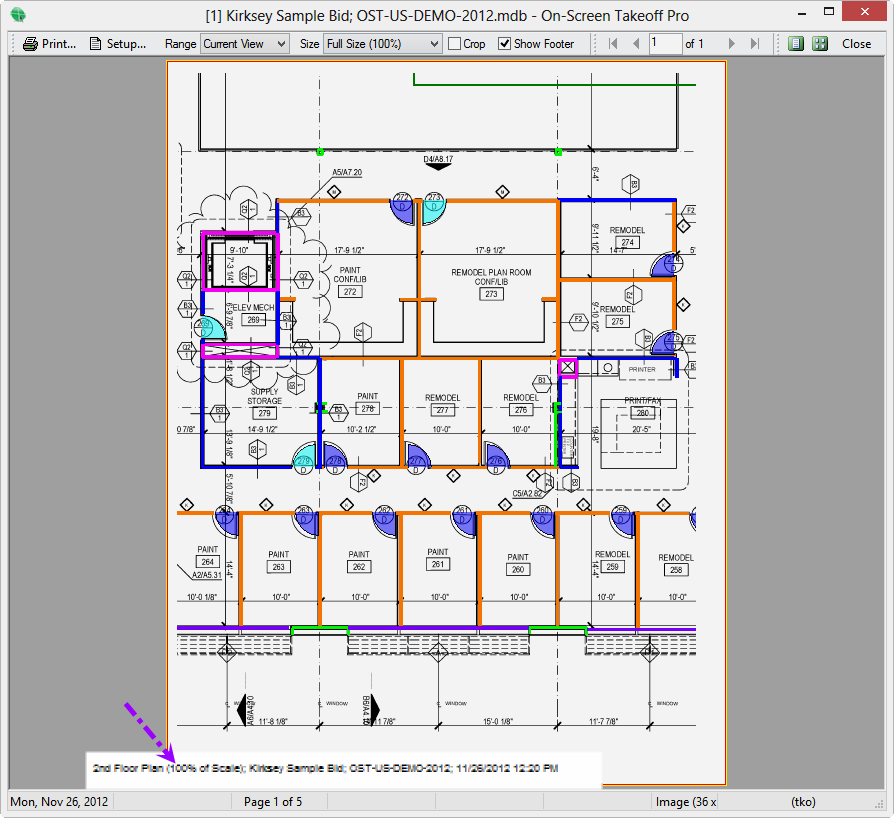

• Click the Print button  - the Print Preview window displays - by default, Current View is selected as the Range.

• Select the Size/Scale (normally "Fit to Page" works well - to print to Scale, choose 100%)
• Click the Print button - the Windows Print Window opens
• Make any necessary changes to the Printer Properties
• Click PRINT or OK to send this page to the selected printer

• Notice the page footer shows the Page Title, the current scale, the Bid name, database name, and current date/time.  Toggle the footer on and off by using the "Show Footer" checkbox in the toolbar.
