The Takeoff Tab displays quantity breakdowns of Conditions according to the results chosen in the Condition Properties dialog (i.e. Linear Feet, Square Feet, Each). The Takeoff Tab is setup similar to a spreadsheet. The Takeoff Tab can display Takeoff Totals, Takeoff and Typical Group/Area Totals, or just Individual Typical Group Totals, see the next article for more information.
Values on the Takeoff Tab can be grouped by Areas, Zones, Type, and Pages. Simply right-click anywhere on the Takeoff Tab and select/deselect the various grouping options. When grouping, the group order is Pages, Type, Zones, then Areas.

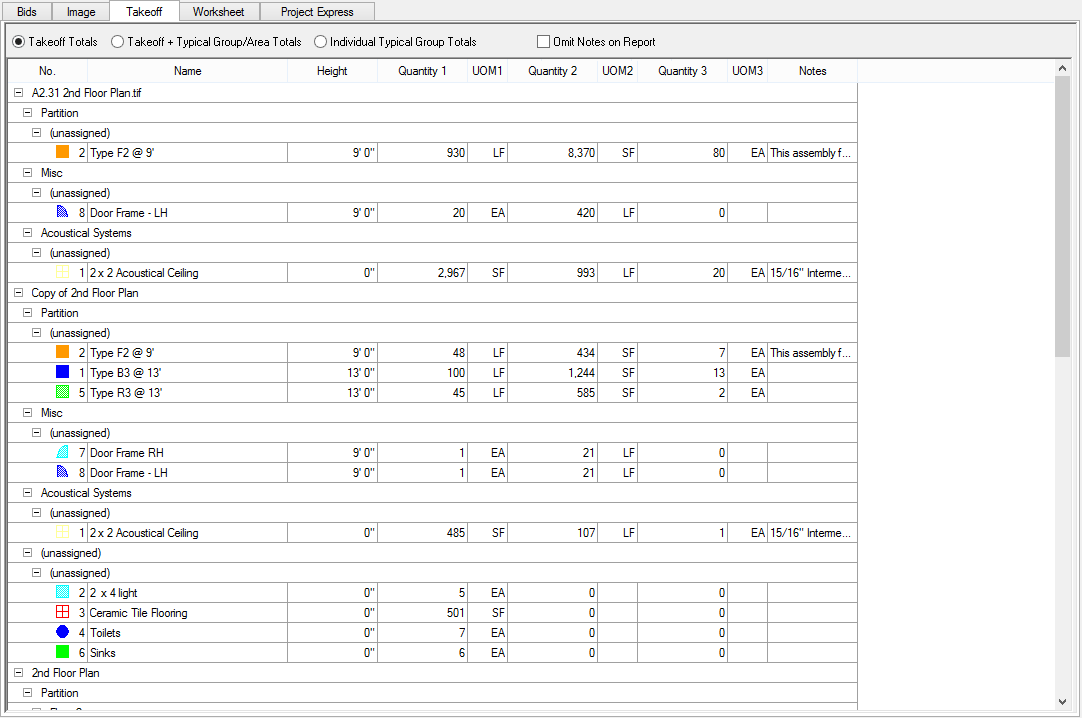

When the Takeoff Tab is grouped by more than one selection, the screen can get a bit unwieldy. The example below shows how a Bid with only a few Areas, Conditions, and pages can be a little hard to read when multiple "Group bys" are selected (this example is grouped by Page, Area, and Type).
To sort the Takeoff Tab, click on the desired column header (i.e.No., Name, Height), an arrow appears next to the group title. A down arrow indicates descending order, and an up arrow, ascending.
Select the header of the column to drag the column to the desired location on the screen.
Click and hold
on either side of the column header to bring up the Resizing icon
and drag the
edge of the column to the left or right to adjust the column width.
To switch between the Base Bid and any Child Bids, use the Bid View drop down above the program Tabs.

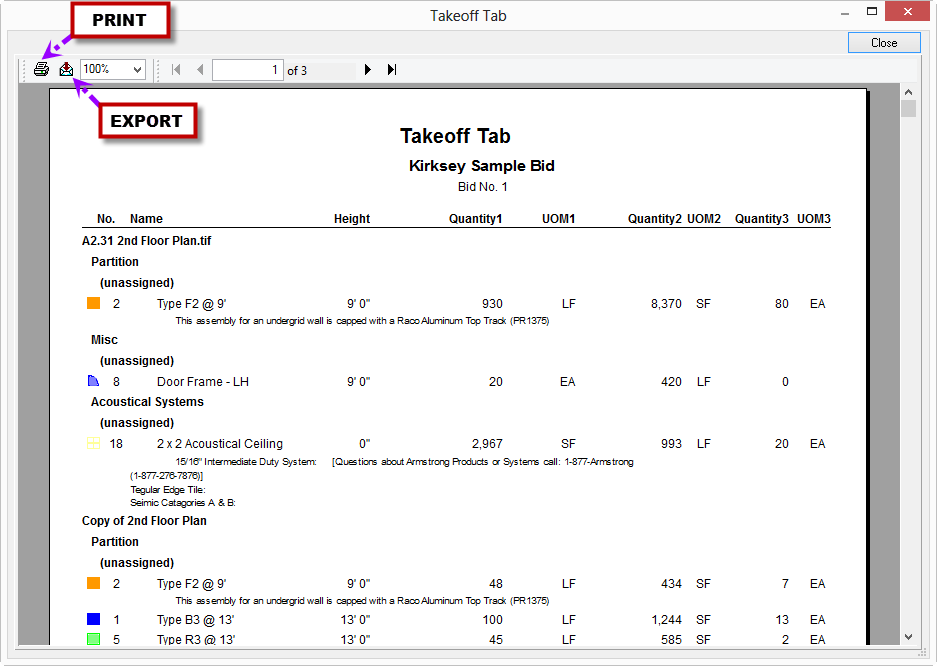

The Takeoff Tab Report prints with the same sort established
on the Takeoff Tab. Click
the Print Preview
button
to generate the report.
To suppress the Notes from the Takeoff Tab report, click the option "Omit Notes on Report" when viewing the Takeoff Tab (before pressing the Print button).
The Takeoff Tab displays an icon next to each Condition representing each Condition's takeoff color and pattern. If this is not printing in color, review your printer setup and make sure your computer is using the most recent printer drivers available. Contact your printer's manufacturer for assistance.
This Takeoff Tab Report may be exported to various
formats once this print preview is open. Click the Export button
. Choose
from a variety of options and methods, see Exporting
the Bids, Takeoff, and Worksheet Tabs for more information.
Conditions may be modified and/or deleted from the Takeoff and/or Worksheet Tabs.
If you delete a Condition from the Takeoff Tab, all associated takeoff, throughout the entire Bid, is permanently and irretrievably deleted from the project. Deleting a Condition cannot be 'undone'.
Deleting a Condition is NOT possible when the Takeoff Tab is grouped by Area, Page, or Zone.
